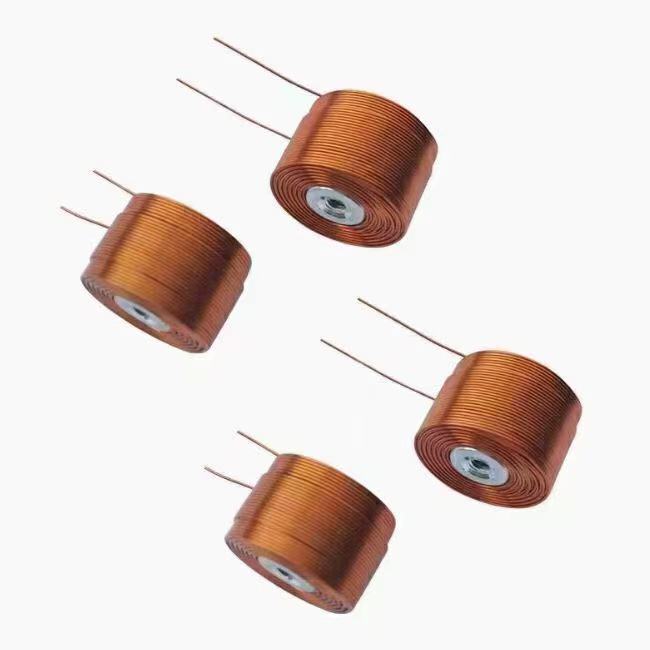

Magnetic Suspension (Maglev) Copper Coil
Custom magnetic suspension (maglev) copper coil wound to your specification — wire gauge, turns, core dimensions and resistance made to order. Parameters confirmed per project. WhatsApp: +86 159 1665 7469 | Email: 15916657469@163.com
"*" indicates required fields
🧲 Product Overview
Magnetic suspension coils are core components in maglev systems, generating the stable magnetic field used for contactless levitation. We support the supply of custom coils for maglev trains, magnetic bearings and maglev motors, based on your drawings and technical specifications. Coils are wound from high-quality enameled copper wire for reliable performance.
✨ Key Features
| Feature | Description |
|---|---|
| High Precision | CNC winding, accurate turns, high consistency. |
| Custom Magnetic Field | Designed per application for optimal field distribution. |
| High Temp Rating | 130 °C / 155 °C / 180 °C optional. |
| 100% Tested | Electrical inspection before shipment, subject to the agreed inspection standard. |
⚙️ Customization Options
| Parameter | Custom Range |
|---|---|
| Coil Type | Circular, rectangular, stadium, multi-layer. |
| Wire Gauge | 0.05 mm – 0.80 mm (or specified AWG). |
| Turns | As required by design. |
| Inductance | Customized per application. |
| Resistance | Controlled per specification. |
| MOQ | 1,000 pcs (sample order negotiable). |
🏭 Typical Applications
- 🚄 Maglev Trains

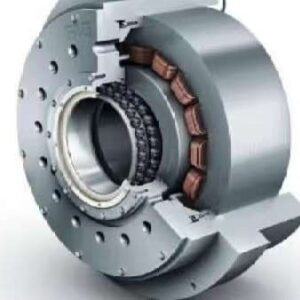

- ⚙️ Magnetic Bearings
- 🌀 Maglev Motors

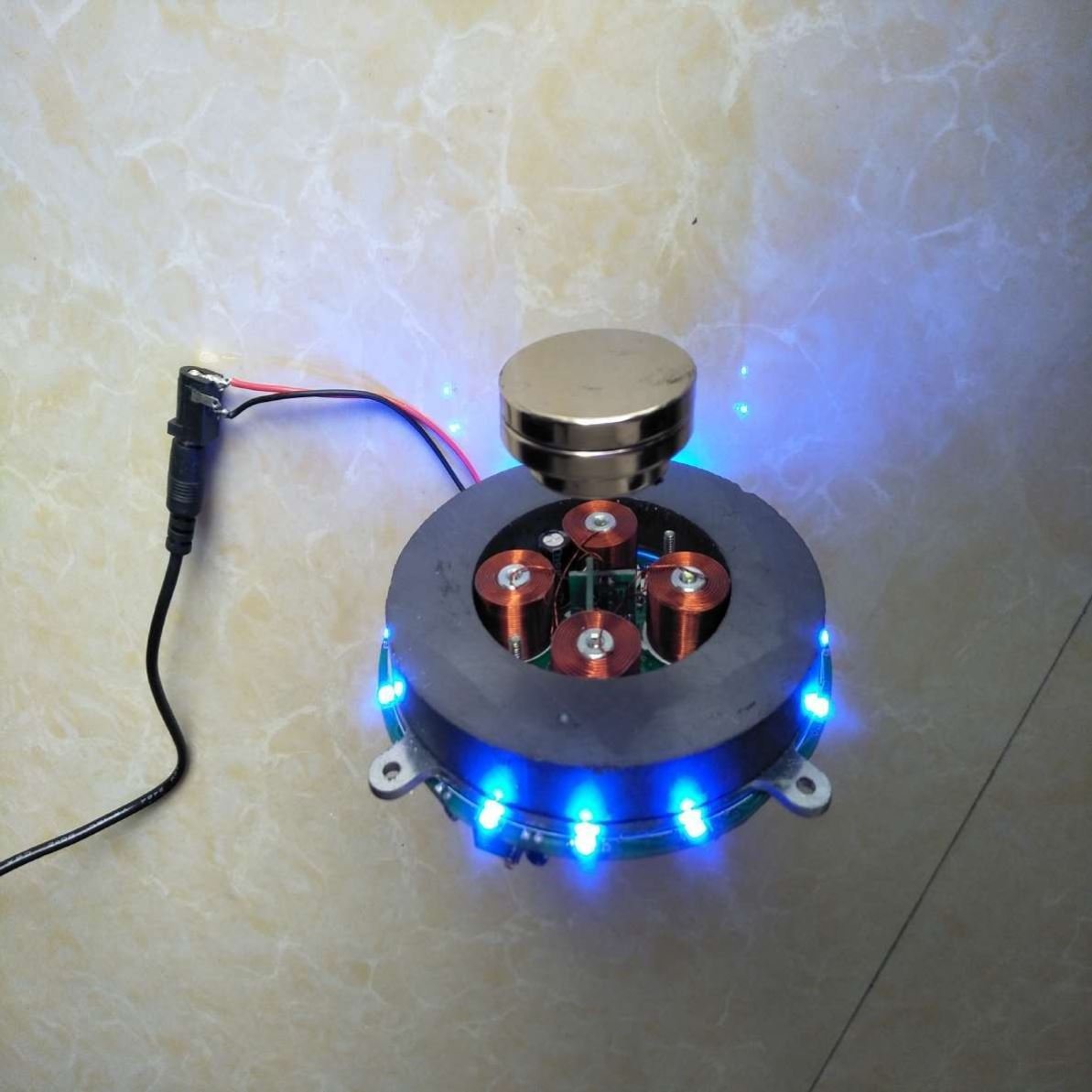

- 🔬 Maglev Experiment Setups
- 🏭 Industrial Maglev Conveyor Systems
📋 Ordering Process
- Submit Inquiry: Send drawing, sample, or specification.
- Engineering Review: Feasibility and cost are evaluated.
- Quotation: Price, lead time and tooling cost, where applicable.
- Sample: Prototype samples are available, subject to project evaluation.
- Production: Scheduled with the selected supplier after approval.
📩 Request a Quote
Email: 15916657469@163.com
Send your drawing and target specification. We review the requirements and come back with suitable supply options.
How to make custom copper coil?
Please provide the specification of product you need to us, the drawing is the best.
What is the material of product?
The main material is copper wire, for assemble product, other material is based on customer requirements, such as ferrite sheet, connector wire, ferrite rod, iron rod and so on.
What is the lead time to make sample?
Usually it will take about 13-15 working days.
What is the payment terms?
T/T, paypal or negociation.
