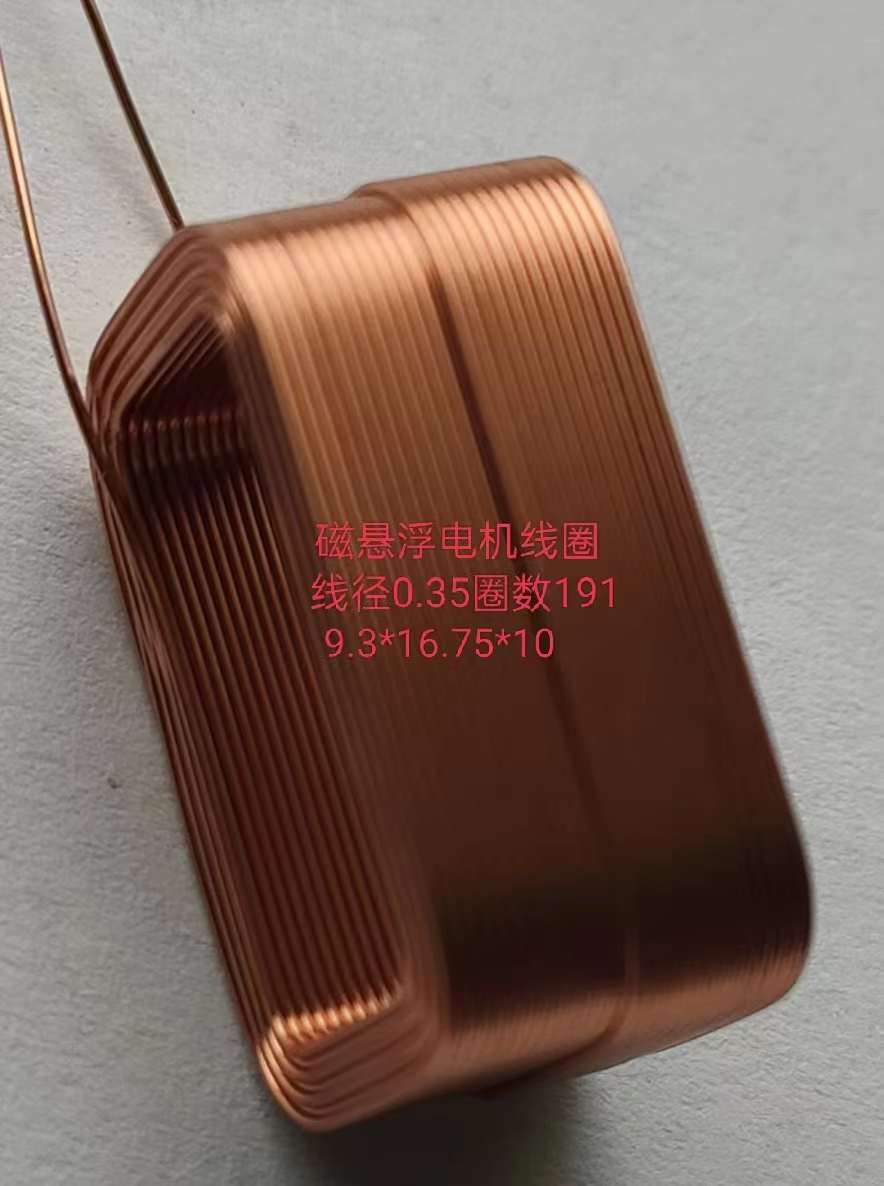

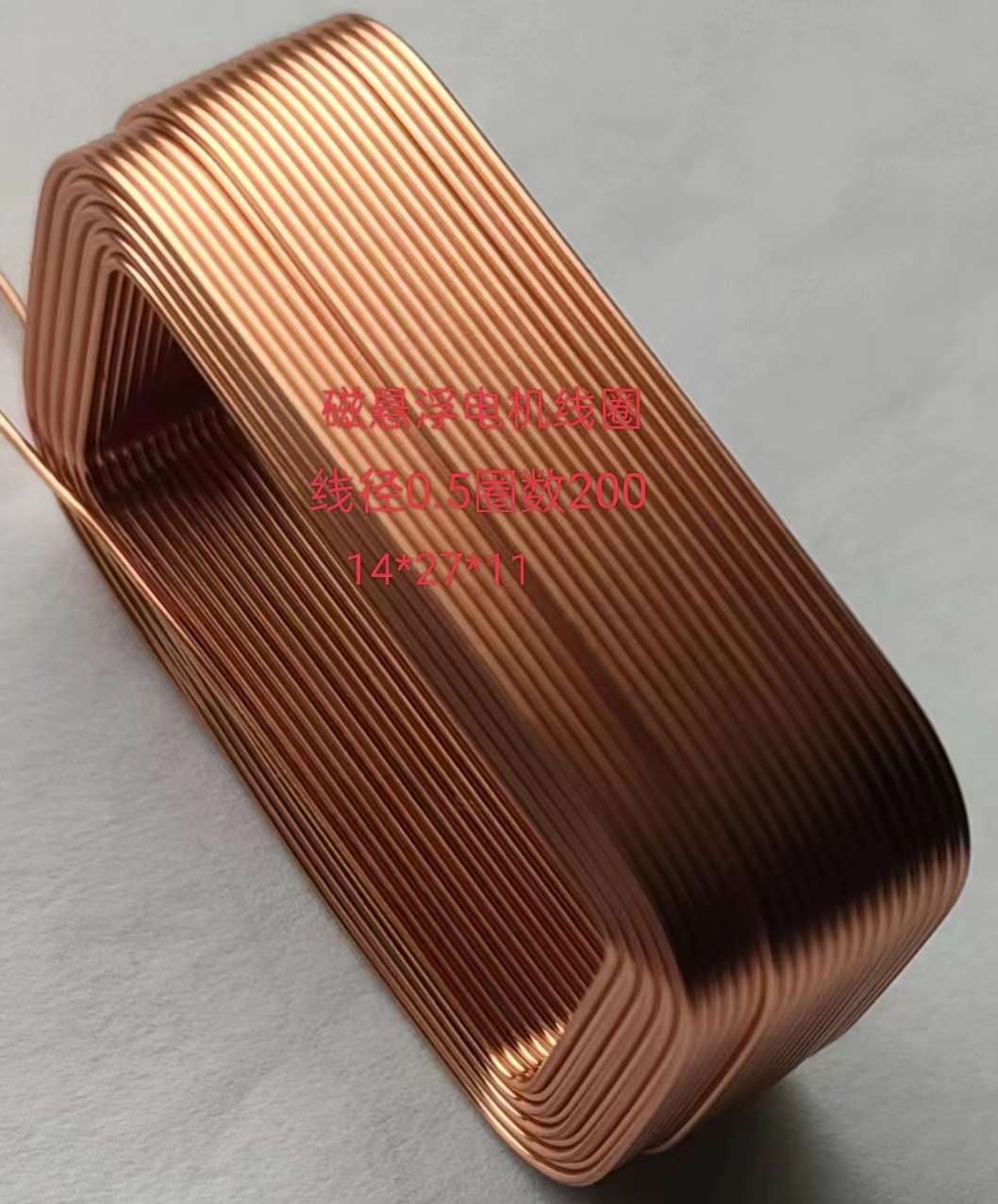

Magnetic Suspension Motor Coil Maglev Motor
Custom magnetic suspension motor coil — engineered for maglev motor applications, wound to your exact drawings. Specify wire gauge, turns, resistance, inductance, and core size. OEM/ODM. MOQ 1,000 pcs. Free samples. WhatsApp: +8615916657469 | 定制磁悬浮电机线圈，按图纸精密绕制，适用于磁悬浮电机，支持OEM/ODM，起订量1000件。
"*" indicates required fields
Description
⚡ 产品概述 | Product Overview

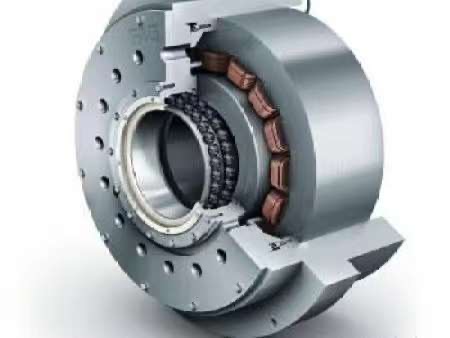

中文：磁悬浮电机线圈是磁悬浮电机的核心部件，用于产生驱动磁场。我们支持按客户图纸定制各类磁悬浮电机线圈，包括无铁芯电机线圈、空心杯电机线圈、外转子/内转子线圈等。采用高品质漆包铜线精密绕制，自粘固化成型，性能稳定可靠。
EN: Magnetic suspension motor coils are core components in maglev motors, generating the driving magnetic field. We support custom coils for coreless motors, hollow-cup motors, outer/inner rotor coils, etc. High-quality enameled copper wire, precision-wound and self-bonded for stable performance.
✨ 产品特点 | Key Features
| 特性 Feature | 说明 Description |
|---|---|
| 精密绕制 Precision Winding | 数控精密绕线，匝数准确，电阻一致。 CNC precision winding, accurate turns, consistent resistance. |
| 自粘固化 Self-Bonding | 热固化自粘，形状稳定，无需骨架。 Thermal self-bonding, stable shape, bobbin-free. |
| 低电阻 Low Resistance | 优化线径和匝数设计，降低功耗。 Optimized wire gauge & turns for low power loss. |
| 全检出货 100% Tested | 出货前100%电气检测。 100% electrical test before shipment. |
⚙️ 可定制参数 | Customization Options
| 参数 Parameter | 可定制范围 Custom Range |
|---|---|
| 电机类型 Motor Type | 无铁芯电机、空心杯电机、BLDC电机线圈。 Coreless, hollow-cup, BLDC motor coils. |
| 线圈形状 Coil Shape | 圆形、矩形、跑道形、扇形或异形。 Circular, rectangular, stadium, sector, or custom. |
| 线径 Wire Gauge | 0.03 mm – 0.80 mm (or specified AWG). |
| 匝数 Turns | 按设计要求定制。 As required by design. |
| 相数 Phases | 单相、两相、三相、多相。 Single, 2-phase, 3-phase, multi-phase. |
| 耐温等级 Temp. Rating | 130°C / 155°C / 180°C (optional). |
| MOQ | 1,000 pcs (sample order negotiable). |
🏭 典型应用 | Typical Applications
- 🌀 磁悬浮电机 / Maglev Motors
- 🎯 空心杯电机 / Hollow-Cup Motors
- ⚡ 无铁芯BLDC电机 / Coreless BLDC Motors
- 🤖 机器人关节电机 / Robotic Joint Motors
- 🎮 高性能无人机电机 / High-Performance Drone Motors
📋 下单流程 | Ordering Process
- 提交询盘 Submit Inquiry: 发送图纸、样品或规格要求。 Send drawing, sample, or specs.
- 工程评估 Engineering Review: 评估可行性与成本核算。 Evaluate feasibility & cost.
- 报价确认 Quotation: 提供价格、交期、模具费。 Provide price, lead time & tooling fee.
- 样板(可选) Sample: 可申请样板确认。 Prototype sample available.
- 批量生产 Production: 样板确认后启动量产。 Mass production after approval.
📩 立即询盘 | Request a Quote
Email: 15916657469@163.com
发送您的图纸和规格要求，24小时内回复报价。 Send your drawing, we reply within 24 hours.
FAQs
How to make custom copper coil?
Please provide the specification of product you need to us, the drawing is the best.
What is the material of product?
The main material is copper wire, for assemble product, other material is based on customer requirements, such as ferrite sheet, connector wire, ferrite rod, iron rod and so on.
What is the lead time to make sample?
Usually it will take about 13-15 working days.
What is the payment terms?
T/T, paypal or negociation.
